New Model
Approximately 10,000 New Model were produced. Chambered for 1.5" .44 Evans cartridge, with magazine capacity reduced to 28. Frame was re-designed and rounded at top and fore-end fit flush to receiver. Lever and hammer are streamlined and a dust cover over loading gate. Markings are same as on Transitional Model, with "U.S.A." added to last line. This version was not serial numbered and any numbers found are assembly numbers only
Military Musket
3,000 produced, with 30" barrel and two barrel bands.
Courtesy Bonhams & Butterfields, San Francisco, California
| NIB | Exc | V.G. | Good | Fair | Poor |
| $0000 | $0000 | $0000 | $0000 | $0000 | $0000 |
| LoginGet Prices | |||||

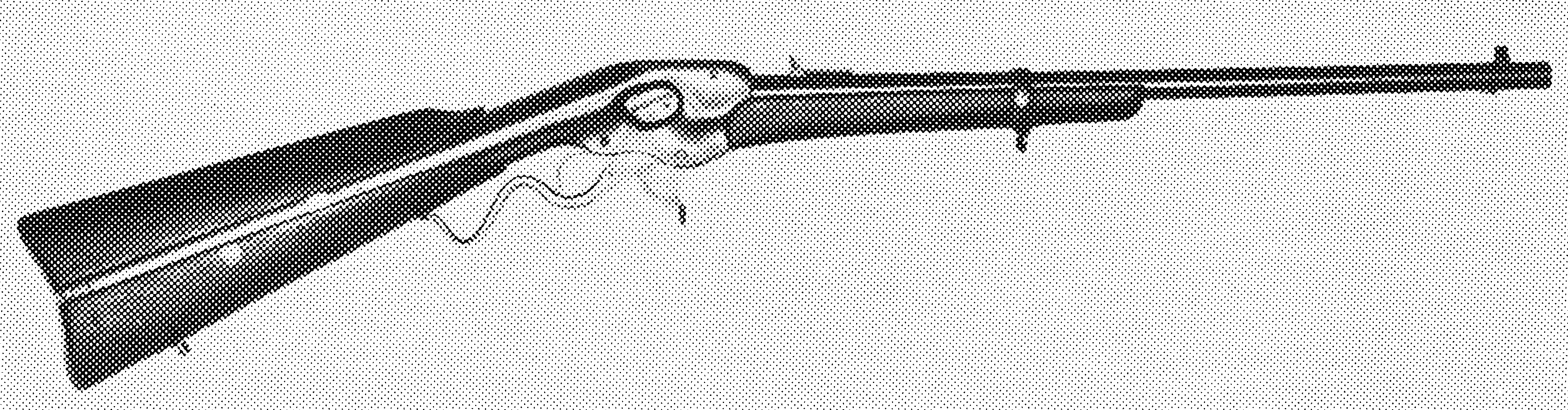

Carbine
4,000 produced, with 22" barrel, one barrel band and sling swivel.
Courtesy Buffalo Bill Historical Center, Cody, Wyoming
| NIB | Exc | V.G. | Good | Fair | Poor |
| $0000 | $0000 | $0000 | $0000 | $0000 | $0000 |
| LoginGet Prices | |||||
Sporting Rifle
3,000 produced, with 26", 28" or 30" octagonal barrels.
| NIB | Exc | V.G. | Good | Fair | Poor |
| $0000 | $0000 | $0000 | $0000 | $0000 | $0000 |
| LoginGet Prices | |||||
